Benchmarks

Benchmarking Systems

Local Systems and Single AWS Instance

System	Hardware Overview	GPU model	GPU count	GPU release date	2022 current approximate GPU Cost
Single Workstation	8x Xeon E5-1630 v4 @3.7GHz ; 128G RAM ; 1G network	GeForce RTX 2080	1	2018/09	650
Cryo-EM Cluster Node 1	2x 16 core Xeon(R) Gold 6142 @2.6GHz ; 384G RAM ; 10G network	1080 Ti	7	2017/03	450
Cryo-EM Cluster Node 2	2x Xeon(R) Gold 6226R @2.9GHz ; 384G RAM ; 10G network	2080 Ti	4	2018/09	650
Cryo-EM Cluster Node 3	AMD EPYC 7542 @2.9GHz ; 512G RAM ; 10G network	RTX6000	4	2018/08	4000
Cryo-EM Cluster Node 4	Xeon(R) E5-2698 v4 @2.2GHz ; 503G RAM ; 50G network	Tesla V100-SXM2	8	2018/03	9000
AWS (g5.4xlarge)	AMD EPYC 7R32 ; 64G RAM ; 10G (burstable) network	NVIDIA A10G Tensor	1	2021/04	N/A

Expanded AWS Instance Set

AWS Instance Type	Hardware Overview	GPU model	GPU count	GPU release date	hourly cost
g4dn.2xlarge	8x Xeon(R) Platinum 8259CL CPU @ 2.50GHz ; 32GB RAM	T4 Tensor Core	1	2018/09	$0.75
g4dn.8xlarge	32x Xeon(R) Platinum 8259CL CPU @ 2.50GHz ; 128GB RAM	T4 Tensor Core	1	2018/09	$2.18
g4dn.12xlarge	48x Xeon(R) Platinum 8259CL CPU @ 2.50GHz ; 192GB RAM	T4 Tensor Core	4	2018/09	$3.91
g4dn.metal	96x Xeon(R) Platinum 8259CL CPU @ 2.50GHz ; 384GB RAM	T4 Tensor Core	8	2018/09	$7.82
g5.2xlarge	8x AMD EPYC 7R32; 32GB RAM	A10G Tensor Core	1	2021/04	$1.21
g5.16xlarge	64x AMD EPYC 7R32; 256GB RAM	A10G Tensor Core	1	2021/04	$4.10
g5.12xlarge	48x AMD EPYC 7R32; 192GB RAM	A10G Tensor Core	4	2021/04	$5.67
g5.24xlarge	96X AMD EPYC 7R32; 384GB RAM	A10G Tensor Core	4	2021/04	$8.14

Notes

Core counts determined via nproc output, and include hyperthreading where enabled.

Network capacity on AWS instances may not be directly comparable to physical systems.

Benchmarking Datasets

Dataset	Number of Images	Storage Space
Beta-Galactosidase	24	3.0G
Cannabinoid Receptor 1-G Protein Complex	2753	476G
Inflammasome	6594	1.6T

Dataset 1

Beta-galactosidase data set from the Namba group at Osaka University, Japan. (EMPIAR-10204, EMD-6840); courtesy of the Relion tutorial. It was collected on a JEOL CRYO ARM 200 microscope.

Dataset 2

Cannabinoid receptor 1-G Protein complex data set from Kumar et al. (EMPIAR-10288, EMD-0339, PDB-6n4b); courtesy of the Skiniotis group at Stanford University via the CryoSPARC tutorial. It was collected on a FEI Titan Krios microscope.

Dataset 3

Inflammasome data set from Sharif et al. (EMPIAR-10597, EMD-22367, PDB-7jkq); courtesy of the Wu group at Harvard University. It was collected on a FEI Titan Krios microscope.

Performance

Current benchmarking workflows run with cryosparc 3.3.2

Beta-galactosidase

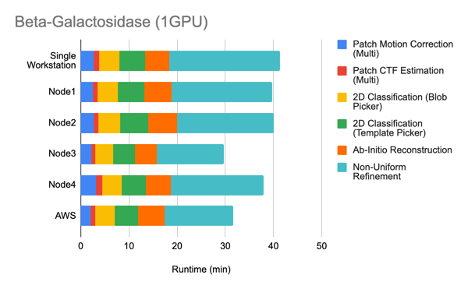

Single GPU performance:

Multi-GPU performance:

Multi-GPU Relative Runtime vs Ideal Case:

Ideal relative speed-up calculated as 1/number of GPUs.

Cannabinoid receptor 1-G protein complex

Single GPU performance:

Multi-GPU performance:

Multi-GPU Relative Runtime vs Ideal Case:

Ideal relative speed-up calculated as 1/number of GPUs.

Single GPU performance vs 2022 GPU Cost:

Performance of all three datasets on a single workstation

Dataset size and single-GPU runtime

Green line showing linear fit.

Recommendations

Total runtime is proportional to the number of images and storage space of the dataset. Beta-galactosidase takes 2820s (0.78h), cannabinoid receptor 67286s (18.7h), and inflammasome 586821s (163h) on a single workstation.
Patch Motion Correction (Multi) and Non-Uniform Refinement are the most time-consuming steps. As the number of images and storage space of the dataset increase, the time for Patch Motion Correction increases.
As the number of GPUs increase, the runtime for Patch Motion Correction drastically decreases.
Cyro-EM cluster Node 3 achieves the best performance overall.

Page edited by: Bojia Cynthia Hu, Grinnell College, Student of the 2022 Summer Scholars Program at Harvard Medical School
